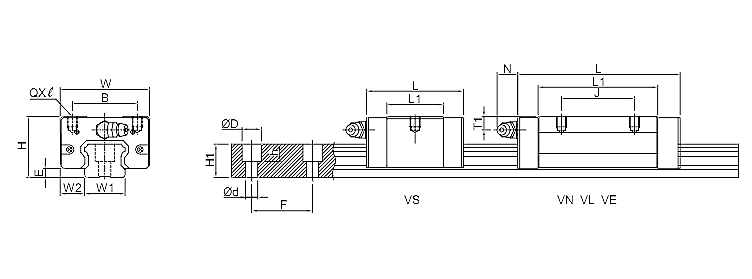

TBI直線導軌TRS-V低組裝四方型系列規格尺寸表
| 型號 |
組裝規格（mm） |
滑塊尺寸（mm） |
導軌尺寸（mm） |
| H |
W2 |
E |
W |
B |
J |
L |
L1 |
Q |
T1 |
油孔 |
N |
W1 |
H1 |
D |
h |
d |
F |
| TRS15VS |
24 |
9.5 |
3.2 |
34 |
26 |
|
40.3 |
22.9 |
M4*5 |
5.5 |
M4*0.7 |
7 |
15 |
13 |
7.5 |
6 |
4.5 |
60 |
| TRS15VN |
26 |
56.9 |
39.5 |
| TRS20VS |
28 |
11 |
4.6 |
42 |
32 |
|
49.4 |
27.8 |
M5*6 |
4.5 |
M6*1 |
14 |
20 |
16.5 |
9.5 |
8.5 |
6 |
60 |
| TRS20VN |
32 |
68.3 |
46.7 |
| TRS25VS |
33 |
12.5 |
5.8 |
48 |
35 |
|
57.2 |
35.2 |
M6*6.5 |
4.5 |
M6*1 |
14 |
23 |
20 |
11 |
9 |
7 |
60 |
| TRS25VN |
35 |
81 |
59 |
| TRS30VS |
42 |
16 |
7 |
60 |
40 |
|
67.4 |
40.4 |
M8*8 |
8 |
M6*1 |
14 |
28 |
23 |
14 |
12 |
9 |
80 |
| TRS30VN |
40 |
96.3 |
69.3 |
| TRS30VL |
40 |
107 |
80 |
| TRS35VS |
48 |
18 |
7.5 |
70 |
50 |
|
75.7 |
45.7 |
M8*8 |
8 |
M6*1 |
14 |
34 |
26 |
14 |
12 |
9 |
80 |
| TRS35VN |
50 |
109 |
79 |
| TRS35VE |
72 |
153 |
123 |
| TRS45VN |
60 |
20.5 |
8.9 |
86 |
60 |
60 |
124.5 |
90.5 |
M10*15 |
10.5 |
PT1/8 |
12.5 |
45 |
32 |
20 |
17 |
14 |
105 |
| 型號 |
額定負載（kgf） |

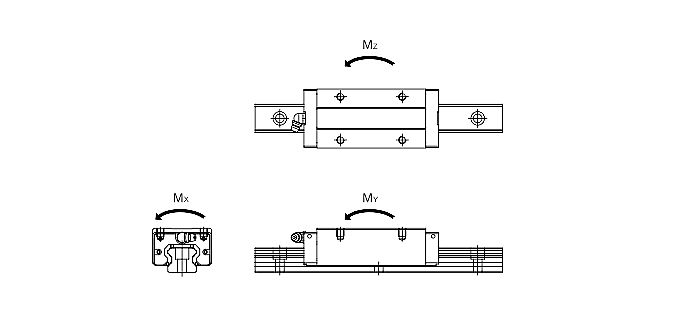

容許靜力矩（kgf-mm） |
重量 |
| C |
Co |
Mx |
My |
Mz |
滑塊 |
導軌 |
| 單滑塊 |
單滑塊 |
雙滑塊 |
單滑塊 |
雙滑塊 |
kg |
kg/m |
| TRS15VS |
908 |
1471 |
10957 |
6420 |
33531 |
6420 |
33531 |
0.09 |
1.32 |
| TRS15VN |
1206 |
2206 |
16436 |
14884 |
70960 |
14884 |
70960 |
0.15 |
| TRS20VS |
1398 |
2140 |
21615 |
10700 |
59798 |
10700 |
59798 |
0.15 |
2.28 |
| TRS20VN |
1896 |
3307 |
33404 |
26459 |
126998 |
26459 |
126998 |
0.23 |
| TRS25VS |
1943 |
3002 |
34826 |
18725 |
97890 |
18725 |
97890 |
0.25 |
3.17 |
| TRS25VN |
2581 |
4503 |
52239 |
43407 |
207324 |
43407 |
207324 |
0.39 |
| TRS30VS |
2697 |
3962 |
55442 |
26950 |
154224 |
26950 |
154224 |
0.48 |
4.54 |
| TRS30VN |
3807 |
6483 |
90722 |
74970 |
355321 |
74970 |
355321 |
0.77 |
| TRS30VL |
4098 |
7203 |
100803 |
93100 |
438966 |
93100 |
438966 |
0.74 |
| TRS35VS |
3753 |
5401 |
92349 |
42896 |
235304 |
42896 |
235304 |
0.71 |
6.27 |
| TRS35VN |
5090 |
8346 |
142722 |
106070 |
519799 |
106070 |
519799 |
1.15 |
| TRS35VE |
6667 |
12274 |
209885 |
233977 |
1070533 |
233977 |
1070533 |
1.54 |
| TRS45VN |
6758 |
10887 |
248758 |
158011 |
782271 |
158011 |
782271 |
1.98 |
10.4 |
