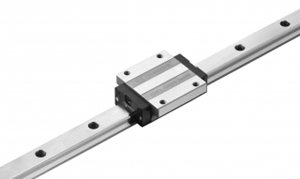

TBI線性滑軌TRH-F高組裝法蘭型系列規格尺寸表

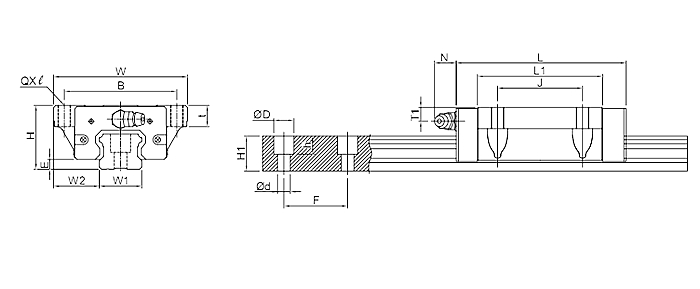

| 型號 |
組裝規格（mm） |
滑塊尺寸（mm） |
滑軌尺寸（mm） |
| H |
W2 |
E |
W |
B |
J |
t |
L |
L1 |
Q |
T1 |
油孔 |
N |
W1 |
H1 |
D |
h |
d |
F |
| TRH15FN |
24 |
16 |
3.2 |
47 |
38 |
30 |
8 |
56.9 |
39.5 |
M5*8 |
5.5 |
M4*0.7 |
7 |
15 |
13 |
7.5 |
6 |
4.5 |
60 |
| TRH15FL |
65.4 |
48 |
| TRH20FN |
30 |
21.5 |
4.6 |
63 |
53 |
40 |
10 |
75.6 |
54 |
M6*10 |
6.5 |
M6*1 |
14 |
20 |
16.5 |
9.5 |
8.5 |
6 |
60 |
| TRH20FL |
80.6 |
59 |
| TRH20FE |
99.6 |
78 |
| TRH25FN |
36 |
23.5 |
5.8 |
70 |
57 |
45 |
12 |
81 |
59 |
M8*12 |
7.5 |
M6*1 |
14 |
23 |
20 |
11 |
9 |
7 |
60 |
| TRH25FL |
93 |
71 |
| TRH25FE |
110 |
88 |
| TRH30FN |
42 |
31 |
7 |
90 |
72 |
52 |
15 |
96.3 |
69.3 |
M10*15 |
8 |
M6*1 |
14 |
28 |
23 |
14 |
12 |
9 |
80 |
| TRH30FL |
107 |
80 |
| TRH30FE |
132 |
105 |
| TRH35FN |
48 |
33 |
7.5 |
100 |
82 |
62 |
15 |
109 |
79 |
M10*15 |
8 |
M*1 |
14 |
34 |
26 |
14 |
12 |
9 |
80 |
| TRH35FL |
123 |
93 |
| TRH35FE |
153 |
123 |
| TRH45FL |
60 |
37.5 |
8.9 |
120 |
100 |
80 |
18 |
140 |
106 |
M12*18 |
10.5 |
PT1/8 |
12.5 |
45 |
32 |
20 |
17 |
14 |
105 |
| TRH45FE |
174 |
140 |
| TRH55FL |
70 |
43.5 |
13 |
140 |
116 |
95 |
29 |
162 |
118 |
M14*17 |
11 |
PT1/8 |
12.5 |
53 |
55 |
23 |
20 |
16 |
120 |
| TRH55FE |
200.1 |
156.1 |
| TRH65FL |
90 |
53.5 |
14 |
170 |
142 |
110 |
37 |
197 |
147 |
M16*23 |
19 |
PT1/8 |
12.5 |
63 |
53 |
26 |
22 |
18 |
150 |
| TRH65FE |
256.5 |
206.5 |
| 型號 |
額定負載（kgf） |

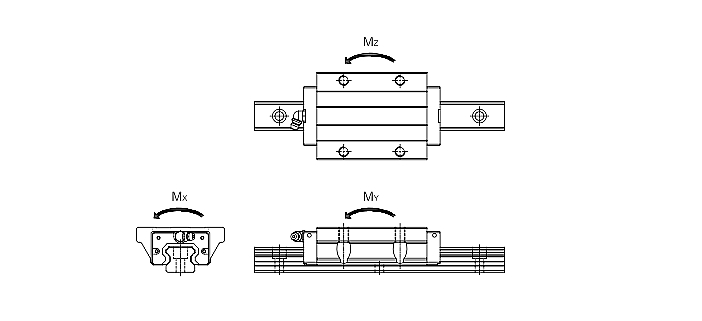

容許靜力矩（kgf-mm） |
重量 |
| C |
Co |
Mx |
My |
Mz |
滑塊 |
滑軌 |
| 單滑塊 |
單滑塊 |
雙滑塊 |
單滑塊 |
雙滑塊 |
kg |
kg/m |
| TRH15FN |
1206 |
2206 |
16436 |
14884 |
70960 |
14884 |
70960 |
0.18 |
1.32 |
| TRH15FL |
1343 |
2574 |
19175 |
20429 |
95224 |
20429 |
95224 |
0.22 |
| TRH20FN |
2050 |
3696 |
37334 |
33268 |
157298 |
33268 |
157298 |
0.39 |
2.28 |
| TRH20FL |
2125 |
3891 |
39299 |
36965 |
176924 |
36965 |
176924 |
0.43 |
| TRH20FE |
2553 |
5058 |
51089 |
63229 |
284163 |
63229 |
284163 |
0.58 |
| TRH25FN |
2581 |
4503 |
52239 |
43407 |
207324 |
43407 |
207324 |
0.60 |
3.17 |
| TRH25FL |
2875 |
5254 |
60945 |
59579 |
277678 |
59579 |
277678 |
0.67 |
| TRH25FE |
3248 |
6255 |
72554 |
85112 |
391311 |
85112 |
391311 |
0.85 |
| TRH30FN |
3807 |
6483 |
90722 |
74970 |
355321 |
74970 |
355321 |
1.01 |
4.54 |
| TRH30FL |
4098 |
7203 |
100803 |
93100 |
438966 |
93100 |
438966 |
1.18 |
| TRH30FE |
4791 |
9004 |
126003 |
147000 |
677068 |
147000 |
677068 |
1.54 |
| TRH35FN |
5090 |
8346 |
142722 |
106070 |
519799 |
106070 |
519799 |
1.47 |
6.27 |
| TRH35FL |
5502 |
9328 |
159512 |
133367 |
656509 |
133367 |
656509 |
1.72 |
| TRH35FE |
6667 |
12274 |
209885 |
233977 |
1070533 |
233977 |
1070533 |
2.29 |
| TRH45FL |
7572 |
12808 |
292657 |
220751 |
1030183 |
220751 |
1030183 |
2.80 |
10.4 |
| TRH45FE |
8852 |
16010 |
365821 |
348554 |
1598703 |
348554 |
1598703 |
3.79 |
| TRH55FL |
14703 |
21613 |
571342 |
411729 |
2019184 |
411729 |
2019184 |
4.22 |
16.1 |
| TRH55FE |
17349 |
27377 |
723699 |
670530 |
3148637 |
670530 |
3148637 |
5.60 |
| TRH65FL |
22526 |
31486 |
973074 |
695840 |
3594277 |
695840 |
3594277 |
9.31 |
22.54 |
| TRH65FE |
27895 |
42731 |
1320601 |
1307568 |
6312759 |
1307568 |
6312759 |
12.98 |
